3-Pin Flasher Relay
3-Pin Flasher Relay
3-Pin Flasher Relay
3-Pin Flasher Relay
Koso

3-Pin Flasher Relay

1 W - 80 W

Art. No. 10032423
|

16 Reviews

€22.99 1
Description

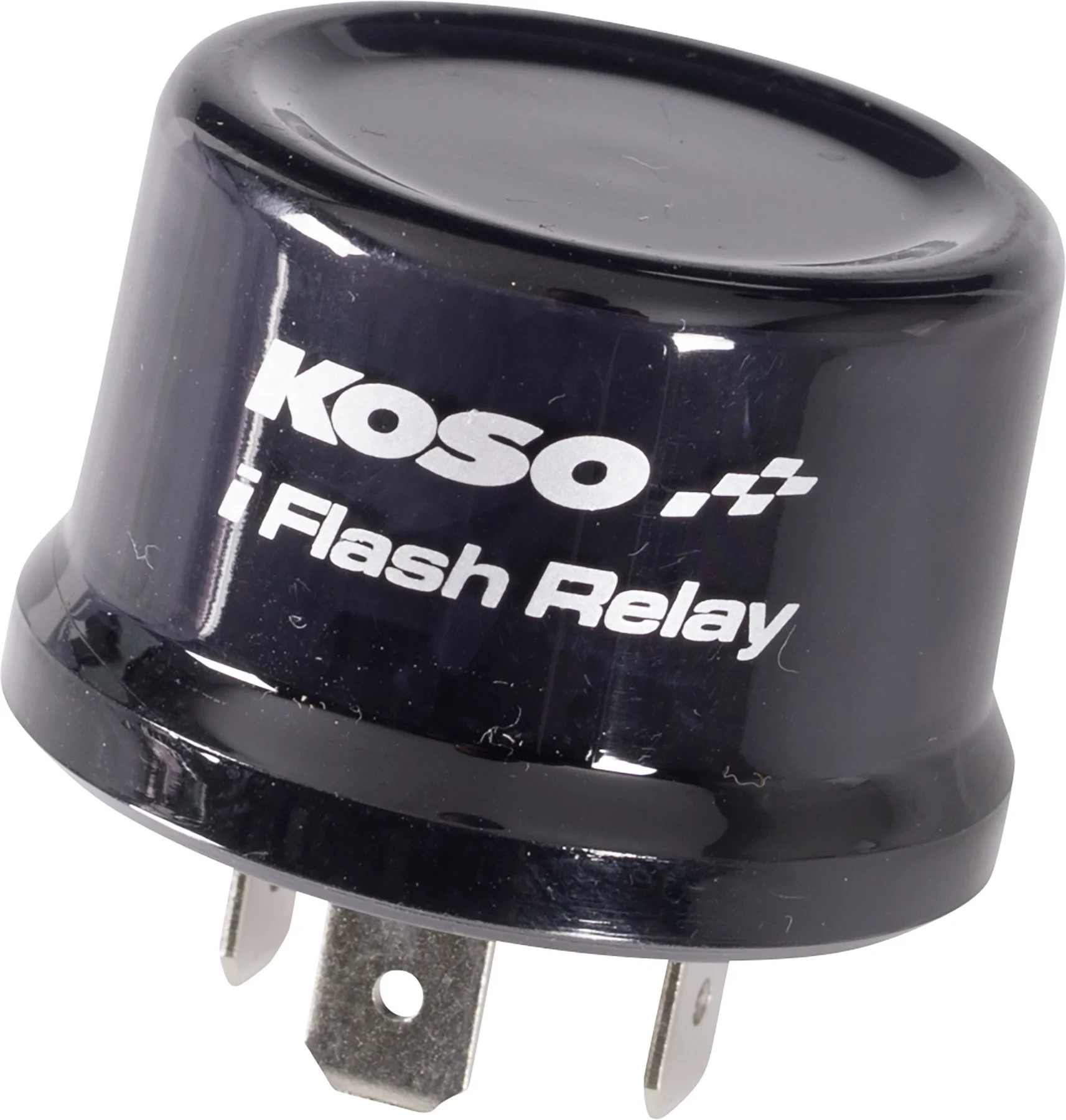

3-Pin Flasher Relay 1 W - 80 W

Universal turn signal relay suitable for LED turn signals or a combination of standard and LED turn signals. Features a fault detection function, meaning that if one turn signal fails, the flashing frequency of the remaining intact turn signal increases.

Features:

  • Voltage: 12 V
  • Load range: 1–80 watts

Pin Assignment:

  • 49 Pi = Battery input, (12V +)
  • 31G = Ground (-), (GND)
  • 49a Pu = Light (to turn signal switch)

Connection to the relay:

  • Black to Pi (power supply 49)
  • Brown (49a) to Pu (signal)
  • Green to 31(-) (GND)

For vehicles with a 3-pin connector and 2-pin assignment (49, 49a):

  • Green (separate) to GND (31) and ground

For vehicles with a 3-pin connector and 3-pin assignment (49, 49a, 31):

  • Use green (adapter plug)

Dimensions:

  • DIAMETER: 37 mm
  • Height: 25 mm

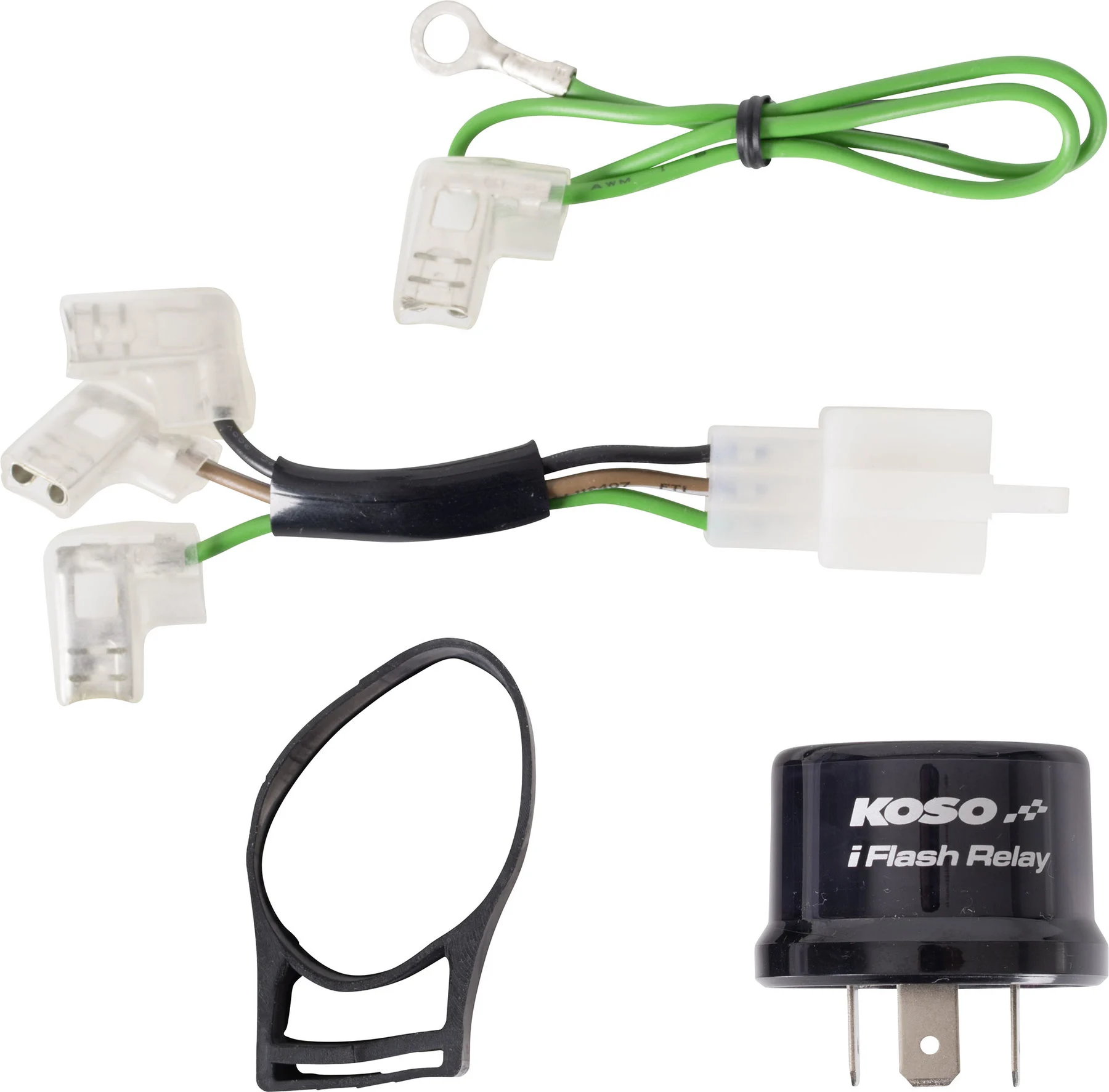

Package contents:
1 x Flashing relay
1 x ground wire
1 x Adapter cable for Honda/Kawasaki/Yamaha
1 x rubber mount

Warning: Strangulation hazard! Danger for children and persons with reduced physical, sensory or mental capabilities (e.g. partially disabled persons, older persons with reduced physical and mental capabilities) or lack of experience and knowledge (e.g. older children)!
Warning: Choking hazard and risk of internal injuries! Small parts can be swallowed. Keep out of reach of children under 3 years of age.
Manufacturer: Koso Europe GmbH & Co KG | Dr.-Walter-Bruch-Strasse 9 | 66606 St. Wendel | Germany | +496851 97870 | info@kosoeurope.com | www.kosoeurope.com
