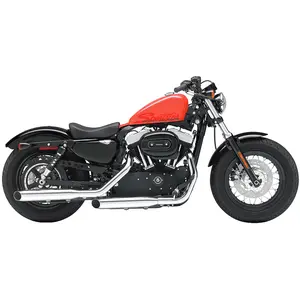

Spare parts and accessories for HARLEY-DAVIDSON SPORTSTER FORTY-EIGHT - XL1200X

1HD1LC3...

My Bike
SPORTSTER FORTY-EIGHT
2010 - 2015
Find another bike
Specifications *
Engine size:
1202
Cylinders:
2
hp/kW:
67/49, 48/35
Vehicle weight (kg):
253
Seat height (mm):
710
Valve clearance (intake):
HYDROSTÖSSEL
Valve clearance (exhaust):
HYDROSTÖSSEL
Engine idle speed:
1000 U/MIN
Carburettor air screw:
ESPFI EINSPRITZUNG
Tyre pressure (front):
2,3 BAR
Tyre pressure (rear):
2,6 BAR
Spark plug 1:
NGK DCPR7E
Spark plug 2:
NGK DCPR7EIX
Electrode gap:
1,0 MM
Fork tube diam.:
39 MM TELEGABEL
Front/rear sprockets:
30/68 ZÄHNE
Chain/Final drive:
ZAHNRIEMEN
Capacities *
Fork oil per rod:
FÜLLHÖHE 160MM 20W
Engine oil w/o filter:
SAE 20W-50
Engine oil with filter:
CA. 2,6 LITER
Gear oil:
CA.950 ML 85W-90
Primary oil:
SIEHE GETRIEBEÖL
Brake fluid:
DOT 4
Fuel:
8,0 LITER
Coolant:
LUFTGEKÜHLT
* We acquire the data with care, but without any guarantee
Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.
